Detectors

The standard detection system for full field tomography consists of three main components:
  • Scintillator
  • Optical microscope
  • Visible light camera (detector)
The scintillator converts the X-ray image produced by the transmission and refraction of the x-ray beam through the sample, also called the shadowgraph or radiograph, into visible light. This visible light image is then magnified by the optical microscope, which is focused at the imaging plane of the scintillator. The magnified image is finally digitally recorded by a highly sensitive visible light camera.

Various combinations of different scintillators, microscopes, and cameras are available at TOMCAT to achieve the optimal image quality for a given experimental setup. The choice of equipment depends mainly on the desired magnification, spatial resolution, and field of view, as well as the X-ray energy to be used and the required acquisition speed. The following paragraphs give some technical details and specifications of the available components.
Depending on user requirements (optimizing for speed and/or resolution), several scintillators are available. The LuAG:Ce scintillators are most frequently used for our standard experiments as they provide a good compromise between speed and resolution. The following table lists the most commonly used scintillators:
Scintillator Thickness (μm) Resolution Speed
LSO:Tb 5.9 Excellent (<1μm) Slow
LuAG:Ce 20 Good (~1μm) Fast
LuAG:Ce 100-150 Medium (>3μm) Faster
LuAG:Ce 300 Poor (>10μm) Fastest
Note that the thickness of the scintillator affects the overall spatial resolution! The thicker a scintillator, the poorer the spatial resolution due to light scattering within the scintillator material. The thickness should thus be matched with the effective pixel size of the optical system.

Other scintillator options are available. If you need a specialized setup, please contact beamline staff in advance of your experiments. Users are also welcome to bring their own scintillators, but should contact beamline staff in advance to ensure that the scintillator fits onto the microscope and a proper mount is available and ready to use.
The TOMCAT endstation features a number of optical microscopes that are compatible with all of our standard detectors. Depending on the detector/microscope combination, the achieved field-of-view can range from 0.4 x 0.3 mm2 to 16.6 x 14.0 mm2. The following table provides a comparison between the microscope characteristics. More detailed information on each microscope is provided below.
Microscope 1 Microscope 2 Microscope 3 Microscope 4 Microscope 5
Name Standard high resolution microscope 1:1 microscope 2x-4x WB microscope 10x/20x WB microscope 4x WB macroscope
Manufacturer Optique Peter Optique Peter Elya Solutions Optique Peter Optique Peter
White beam compatible No Yes Yes Yes Yes
Lens type Olympus
PLAPO/UPLAPO
KinoOptic built-in Mitutoyo
M Plan Apo
built-in
Magnification 1.25x, 2x, 4x, 10x, 20x, 40x 1.0x continuous: 2.24x - 3.78x 6.8x/13.7x
10x/20x
4.0 x
Image optique peter microscope.jpg optique peter macroscope.jpg lowresWBmicroscope.jpg highresWBmicroscope.jpg

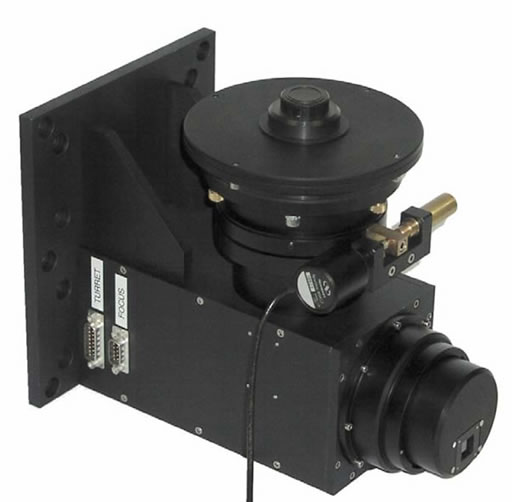

Microscope 1: Standard high resolution microscope (Optique Peter)

This microscope system is based on diffraction-limited optics and can accommodate 1.25x, 2x, 4x, 10x, 20x and 40x objectives as listed in the table below. The field-of-view and effective pixel sizes are calculated in the standard configuration, i.e., for the pco.EDGE 5.5 detector with a pixel size of 6.5 μm. If a different detector is used, these numbers will change accordingly based on the detector's pixel size.
Objective Magnification Numerical Aperture Field-of-view (mm2) Pixel Size (μm2)
PLAPO1.25x 1.25 0.06 13.3 x 11.2 5.2 x 5.2
PLAPO2x 2 0.08 8.3 x 7.0 3.25 x 3.25
UPLAPO4x 4 0.16 4.2 x 3.5 1.63 x 1.63
UPLAPO10x 10 0.40 1.7 x 1.4 0.65 x 0.65
UPLAPO20x 20 0.70 0.8 x 0.7 0.33 x 0.33
UPLAPO40x 40 0.90 0.4 x 0.3 0.16 x 0.16
Please remember that pixel size DOES NOT EQUAL spatial resolution! As a general rule-of-thumb, two pixels are necessary to define an edge and three pixels are necessary to define a feature. So, depending on your goals, the true spatial resolution is typically 2-3 times the effective pixel size.

Microscope 2: 1:1 Optics (Optique Peter)

This system is based on a high numerical aperture tandem 1:1 configuration, accepting a diagonal up to 40 mm. It is typically used for the DPC setup or for large samples that do not require high spatial resolution. A larger pixel size option is available within this setup. Please contact the beamline staff if this option would benefit your experiments.
Lens Magnification Focal length Field-of-view (mm2) Pixel Size (μm2)
KinoOptik 1.0 150 mm 16.6 x 14.0 6.5 x 6.5

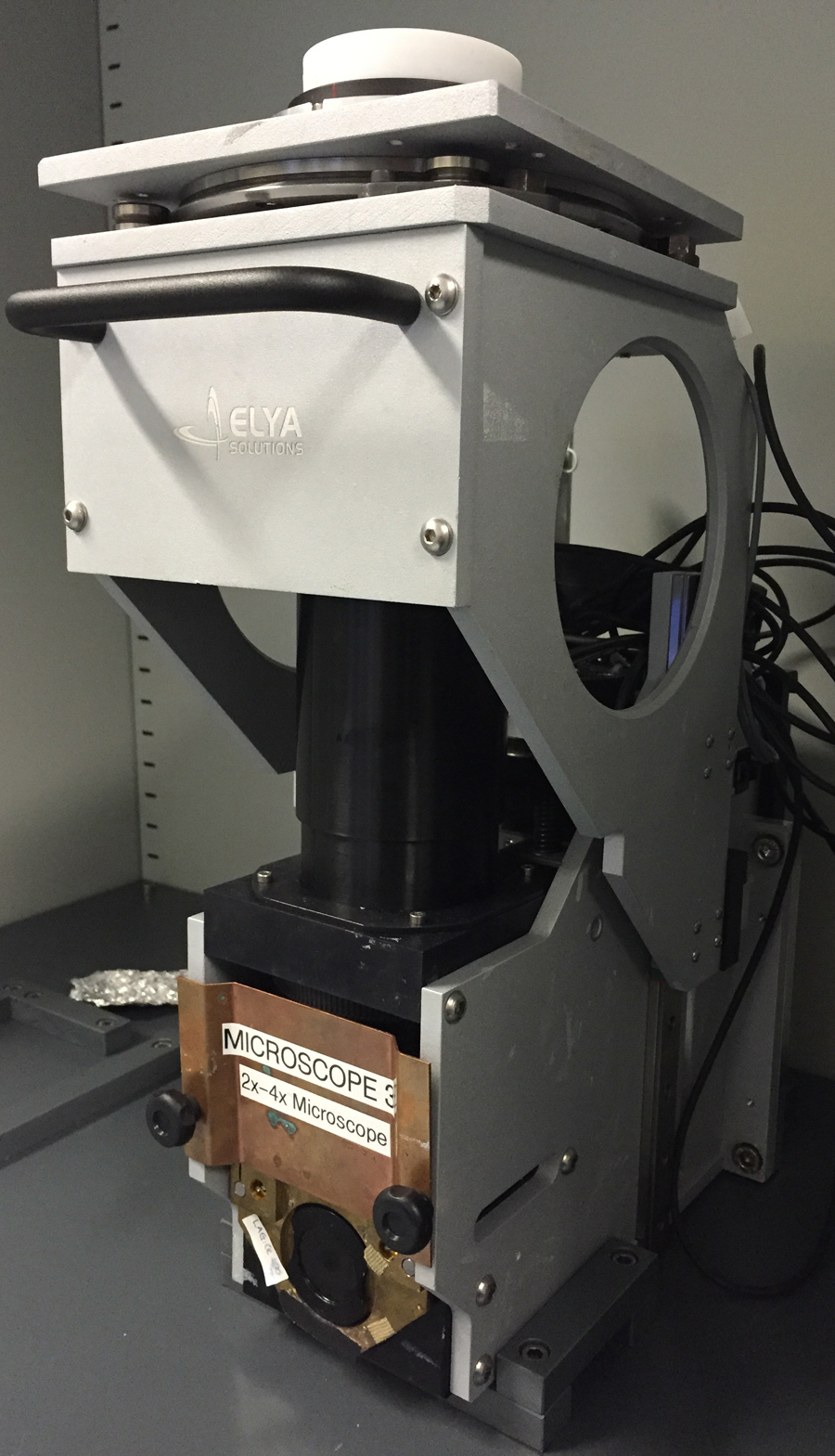

Microscope 3: 2-4x Continuous Magnification White-Beam Microscope (Elya Solutions)

This microscope features a continuously adjustable magnification from 2.24 to 3.78 times, and it is designed with a high numerical aperture and for polychromatic radiation. It is typically used for high-speed experiments with both the pco.EDGE 5.5 and the GigaFRoST detectors, either with monochromatic or polychromatic radiation. The table below lists the approximate range of pixel sizes and fields-of-view attainable within the limits of the magnification for the two different detector types.
Camera Magnification Field-of-view (mm2) Pixel Size (μm2)
pco.EDGE 5.5 2.24 7.4 x 6.3 2.9 x 2.9
pco.EDGE 5.5 3.78 4.4 x 3.7 1.7 x 1.7
GigaFRoST 2.24 9.9 x 9.9 4.9 x 4.9
GigaFRoST 3.78 5.9 x 5.9 2.9 x 2.9

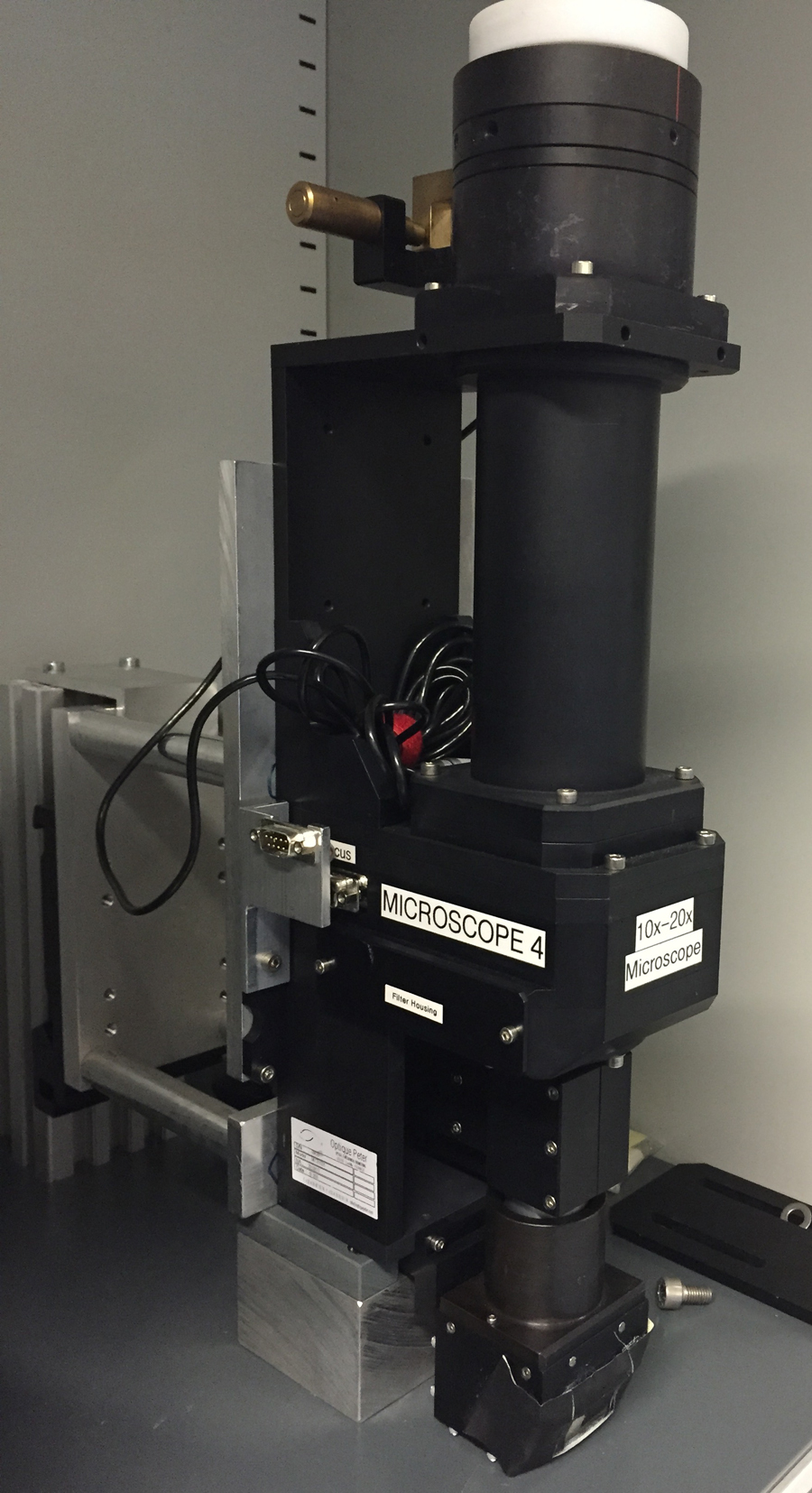

Microscope 4: High Resolution White-Beam Microscope (Optique Peter)

This is a long working distance, high resolution microscope typically used with polychromatic radiation. It is based on diffraction-limited optics and allows the selection of two different magnifications by exchanging the objective lens (5x or 10x). In combination with the 2x eye piece, the effective nominal magnification is 10x or 20x. Removal of the eye piece improves the light throughput significantly, but changes the focal lengths as well. Without the eye piece, the 5x and 10x objective lenses result in effective magnifications of 6.8x and 13.7x, respectively (no longer infinity-corrected).

The two objective lenses are manufactured by Mitutoyo and have the following specs:

Objective Magnification Numerical Aperture Focal length [mm]
M Plan Apo 5x 5.0 0.14 200
M Plan Apo 10x 10.0 0.28 200
The available magnifications and fields-of-view are as follows:
Camera Magnification Field-of-view (mm2) Pixel Size (μm2)
pco.EDGE 5.5 6.8x 2.4 x 2.1 0.96 x 0.96
pco.EDGE 5.5 13.7x 1.2 x 1.0 0.47 x 0.47
GigaFRoST 6.8x 3.25 x 3.25 1.61 x 1.61
GigaFRoST 13.7x 1.6 x 1.6 0.80 x 0.80

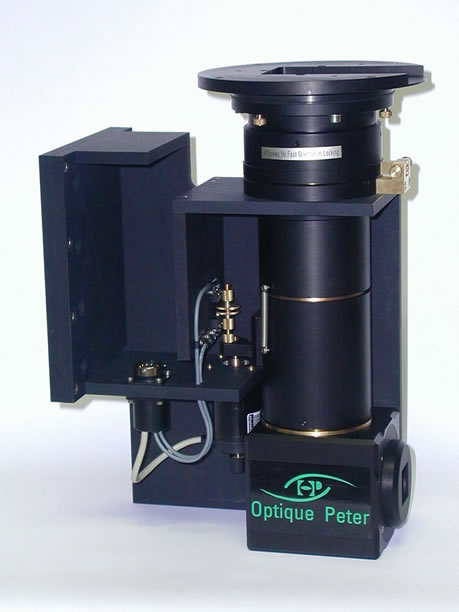

Macroscope 5: High Numerical Aperture White-Beam Macroscope (Optique Peter)

This novel, high quality custom-made macroscope offers a 4x magnification and has a very high numerical aperture of 0.35, making it highly efficient. The macroscope is modular, flexible and can be mounted both in a horizontal and vertical configuration, to best match the sample environment and imaging requirements. It has been designed for high-resolution time-resolved X-ray tomographic microscopy and can be operated using both polychromatic and monochromatic radiation, coupled either to the pco.Edge or GigaFRoST detector. The macroscope has a tunable aperture which can be used to optimize the spatial resolution for different imaging setups. The high efficiency and superior image quality of the macroscope have made tomographic studies with a time resolution of 20 Hz and beyond at TOMCAT a reality. A detailed description of the macroscope performance can be found here (DOI: 10.1107/S1600577519004119).

The available fields-of-view and pixel sizes are described in the table below:

Camera Field-of-view (mm2) Pixel Size (μm2)
pco.EDGE 5.5 4.2 x 3.5 1.6
GigaFRoST 5.5 x 5.5 2.75
The following detectors are routinely in use at TOMCAT and fully supported in the data acquisition and controls system. The choice of detector is governed mostly by the requirements in terms of the achievable pixel size, field of view, image quality and acquisition speed. The table below gives the key specifications for these cameras, while the paragraphs below contain more specific information about each camera model.
pco.Edge 5.5 pco.Edge 4.2 pco.Dimax GigaFRoST
Manufacturer pco pco pco PSI in-house
Pixel size [μm] 6.5 6.5 11.0 11.0
Sensor size [pixels] (h x v) 2560 x 2160 2048 x 2048 2016 x 2016 2016 x 2016
Sensor size [Megapixels] 5.5 4.2 4.1 4.1
Max frame rate (full frame) 100 fps (FS,RS)
33 fps (SS,RS)
100 fps (FS)
35 fps (SS)
1255 fps 1255 fps
Max frame buffer (full frame) 3'000 3'000 6’307 71’860
Exposure time 500μs - 2s 100μs - 10s 2μs - 40ms 2μs - 40ms
Shutter mode RS/GS RS GS GS
Bit-depth 16-bit 16-bit 12-bit 12-bit
Dynamic range [dB] 88.6 90.4 65.8 65.8
Peak QE >60% >70% >50% >50%
Dark current [e-] 1.2 1.0 <20 <20
Cooling water (chiller) water (chiller) air (fan) air (fan)
Legend:
  • RS: Rolling Shutter
  • GS: Global Shutter
  • FS: Fast scan
  • SS: Slow scan

pco.Edge 5.5

This is the low noise and large field of view camera by pco, and the work-horse camera for standard measurements at TOMCAT. It is built on sCMOS technology and features a sensor size of 2560 x 2160 pixels, 6.5μm pixel size and a 16-bit nominal dynamic range → technical specifications.

pco.Edge 4.2

This is the slightly smaller brother of the pco.Edge 5.5, featuring even slightly lower noise levels, but at the expense of a reduced sensor size (2048 x 2048 pixels). It is also based on sCMOS technology with a 6.5μm pixel size and a 16-bit nominal dynamic range → technical specifications.

pco.Dimax

The pco.Dimax is the high-speed camera offered by pco. The imaging chip is built on CMOS technology and features 2016 x 2016 pixels, 11μm pixel size and a 12-bit nominal dynamic range. The camera has an on-board memory of 36 GB and is read out via a USB2.0 connection (slow!) → technical specifications.

This camera is rarely used at present and mostly replaced by the GigaFRoST camera.

GigaFRoST

The GigaFRoST camere is a PSI in-house development incorporating the same imaging chip as the pco.Dimax, but featuring a novel readout system providing continuous and sustained data streaming at up to ~8GB/s to a dedicated high-performance data backend server. This allows for the high-speed acquisition of long time series to observe dynamic phenomena in a time-resolved manner during long perdiods of time.

For an in-depth description of the GigaFRoST camera system refer to R. Mokso, C. M. Schlepütz, G. Theidel, H. Billich, E. Schmid, T. Celcer, et al., "GigaFRoST: The Gigabit Fast Readout System for Tomography", J. Synchrotron Rad., 24 (6), 1250-1259 (2017). DOI: 10.1107/S1600577517013522.

Post-Processing and Reconstructions

All projections are post-processed online and reconstructions are available immediately after a scan is complete. Data can be exported as TIFF (8-bit or 16-bit) or in raw binary format (DMP format) on request. More details about the algorithms and reconstruction capabilities at TOMCAT can be found in:

F. Marone, and M. Stampanoni, "Regridding reconstruction algorithm for real time tomographic imaging", J. Synchrotron Rad., 19, 1029-1037 (2012). pdf
